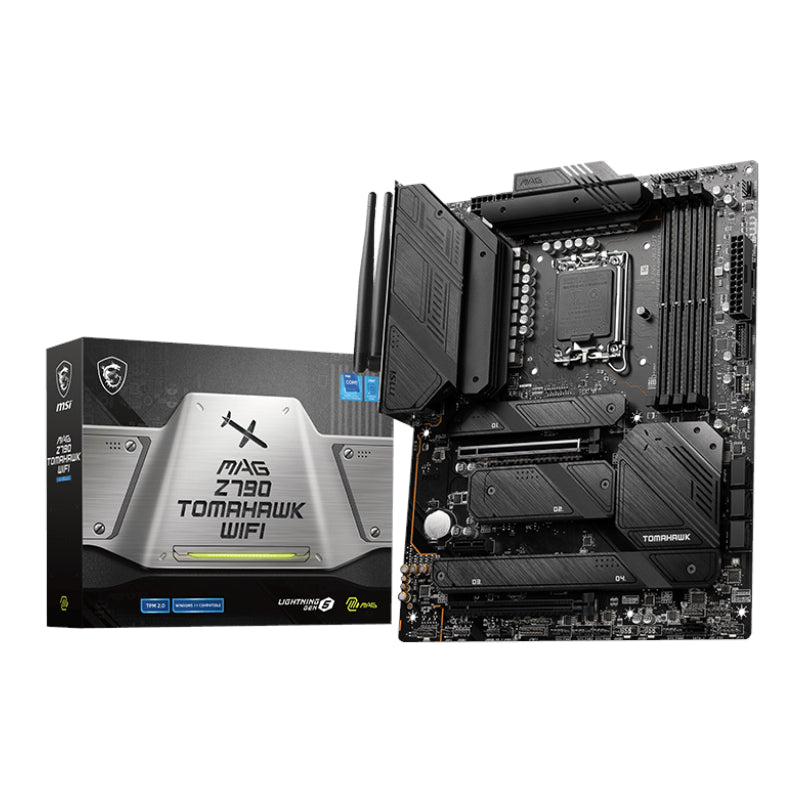

MSI MAG Z790 TOMAHAWK WIFI DDR5 LGA1700 ATX Gaming Motherboard

The MSI MAG series fights alongside gamers in pursuit of honour. With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability. MSI motherboards let you manage speeds and temperatures for all your system and CPU fans in BIOS and software with a simplified graphical interface. You can also set up to 4 temperature targets, which will adjust the fan speeds automatically.

Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked ‘keep-out-zone’ allows for easy and safe installation and a perfect fit. MSI fan headers automatically detect fans running in DC or PWM mode for optimal tuning of fan speeds and silence. Hysteresis also makes your fans spin up fluently to make sure your system stays silent, no matter what.

Unleash and sustain maximum performance with a premium VRM design built with a total of 16+1+1 Duet Rail Power System(DRPS). Combining dual power connectors and a Power Stage, MAG Z790 TOMAHAWK WIFI DDR4 is ready for the challenge of high-end processors. The PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission.

MSI MAG series motherboards offer a huge step in DDR performance enhancement with the latest DDR5 memory. Combines with a dedicated SMT welding process and MSI Memory Boost technology, the MAG Z790 TOMAHAWK WIFI is ready to deliver world-class memory performance. A Mystic Light Extension pin header provides an intuitive way to control additional RGB strips and other RGB peripherals added to a system, without needing a separate RGB controller.

FEATURES:

• Supports 12th/ 13th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
• Supports DDR5 Memory, up to 7200+(OC) MHz
• Enhanced Power Design: 16+1+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost
• Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2
• Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for a high-performance system and non-stop works
• Audio Boost 5: Reward your ears with the studio-grade sound quality for the most immersive gaming experience
• High-Quality PCB: 6-layer PCB made of 2oz thickened copper and server-grade level material

SPECIFICATIONS:

• Socket: 1700
• CPU (Max Support): Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
• Chipset: Intel® Z790 Chipset
• DDR5 Memory: 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
• Memory Channel: Dual
• DIMM Slots: 4
• Max Memory (GB): 128
• PCI-E x16: 2
• PCI-E X1: 1
• SATAIII: 7
• M.2 Slot: 4
• RAID: 0/1/5/10
• LAN: 1x Intel® 2.5Gbps LAN
• Wireless/Bluetooth: Intel® Wi-Fi 6E
• USB 3.2 ports (Front): 1(Gen 2, Type-C), 2(Gen 1, Type A)
• USB 3.2 ports (Rear): 1(Gen 2×2, Type-C), 1(Gen 2, Type-C), 1(Gen 2, Type A), 4(Gen 1, Type A)
• USB 2.0 ports (Front): 4
• Audio ports (Rear): Realtek® ALC4080 Codec
• DisplayPort: 1
• HDMI: 1
• DirectX: 12
• Form Factor: ATX
• Operating System: Support for Windows® 11 64-bit, Windows® 10 64-bit

WHAT’S IN THE BOX:

• MSI MAG Z790 TOMAHAWK WIFI DDR5 LGA1700 ATX Gaming Motherboard – Black x1
• Wi-Fi Antenna x2
• EZ M.2 Clips x2
• USB Drive x1
• SATA Cables x2
• Cable Stickers x1
• Quick Installation Guide x1
